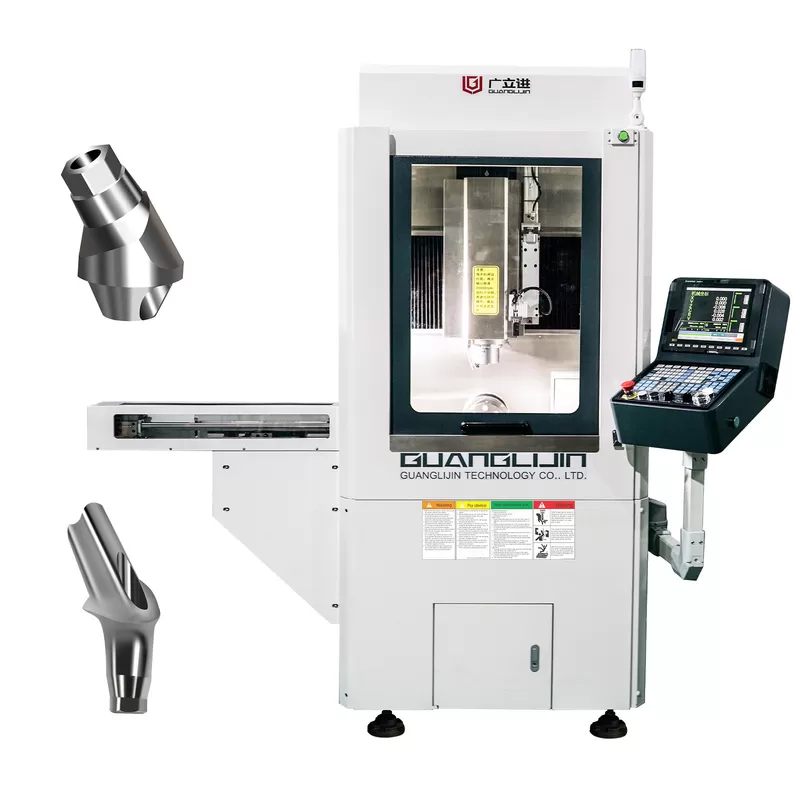

The F50 Medical Special Turning Milling Machine is meticulously designed for precision, efficiency, and versatility, catering to the specific needs of medical applications.

Key Features & Specifications:

• High-Performance Axis Control:
  • B Axis Reducer: German-made Alpha reducer with a rated torque of 88.9 Nm and instantaneous maximum torque of 312 Nm.
  • C Axis Motor: Speed up to 3000 rpm with a rated torque of 15 Nm for exceptional rotation control.
• Precision Components: Rexroth transmission ensures repeatability within ±0.003 mm.
• Advanced Operation System: SYNTEC system with a 10.4-inch screen, allowing up to 600 mm extension on the left side.
• Powerful Spindle: 8.0 kW electric spindle with a maximum speed of 36,000 rpm, supported by water cooling with flow alarm for reliability.
• Tool Versatility: Supports up to 16 milling tools and 4 turning tools, with HSK-E32 tool holders and ER-20 collet chucks.

Additional Advantages:

• Automatic Calibration & Lubrication: Automated tool setting with repeatability of ±0.002 mm and precise oiling for maintenance.
• Exceptional Flatness: Working flatness maintained within ±0.005 mm.
• Flexible Stroke Range: X-axis: 400 mm, Y-axis: 155 mm, Z-axis: 235 mm.
• Robust Build: Weighing 1.5 tons, ensuring stability during operation.
• Ergonomic Design: Pneumatic front door and automatic feeding/collecting systems for seamless workflows.

Dimensions & Power:

• Compact Layout: Main body dimensions range from 1100x1300x2100 mm (min.) to 2400x1300x2700 mm (max.).
• Power Requirements: Three-phase 380V/50Hz.

The F50 Medical Special Turning Milling Machine combines state-of-the-art engineering with user-friendly automation, delivering unmatched precision and efficiency for medical manufacturing tasks.
