Description

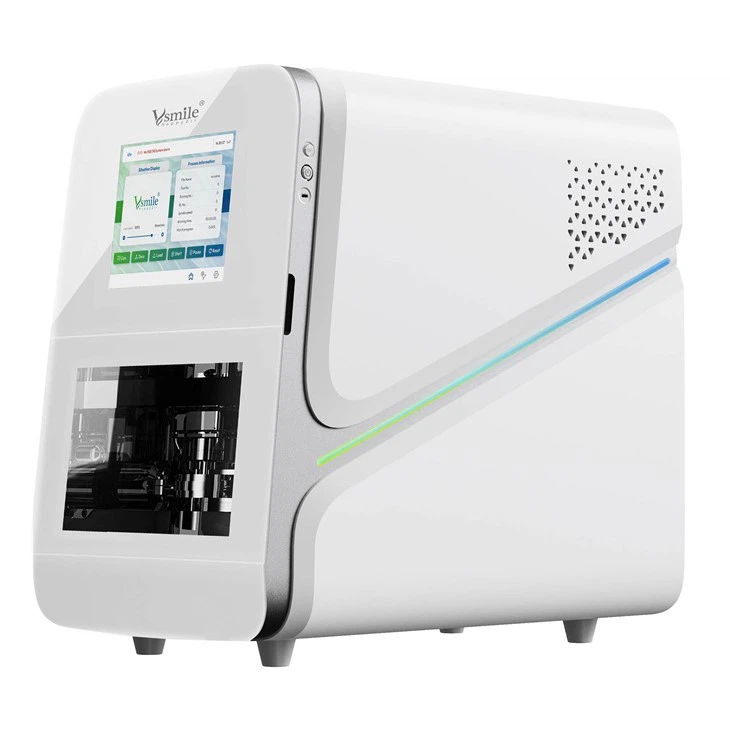

Milling Machine Dry – C512D (Without software)

The Smile-Craft C512D by Vsmile is a state-of-the-art dental milling solution, designed exclusively for zirconia, PMMA, PEEK, and wax processing. Combining intuitive operation with unmatched precision, this versatile machine delivers consistent, high-quality results while ensuring ease of use. Its ability to perform 90° vertical processing of the buccal surface enhances restoration aesthetics and functionality.

Key Features:

1. Intuitive Operation
The Smile-Craft C512D is easy to operate, enabling any trained staff member to use it after a short introduction.

2. Advanced Milling Capabilities

• Supports zirconia, PMMA, PEEK, and wax, ensuring versatility for diverse dental restoration needs.
• Achieves 90° vertical milling for accurate and natural restorations.

3. Sturdy Construction

• Made from aviation-grade cast aluminum for superior durability.
• Compact dimensions (525/700/784mm) and lightweight design (130kg) with optional 50kg bracket for easy installation.

4. High-Performance Spindle

• Water-cooled spindle with speeds up to 60,000 RPM for precise and stable milling.
• Delivers a torque of ≥125 Ncm, ensuring smooth operations even during demanding tasks.

5. Digital Servo Motor Technology
Ensures precise axis movement and minimal vibration for micron-level accuracy (8μm).

6. Efficiency & Open Integration

• Zirconia milling time is ≤20 minutes for faster output.
• Open-system CAM software for seamless integration with existing workflows.

Specifications:

• Axes: 5-axis simultaneous machining
• Motor Speed: 60,000 RPM
• Power Consumption: 3.5KW
• Compressed Air Requirement: 6 bar, 95 L/min
• Accuracy: ±8μm
• Rotary Axis Travel:
  • A-axis: ±360°
  • B-axis: -28° to +91°

Models & Options:

The Smile-Craft C512D is available in Standard, Optional, and Top-Level configurations:

• Camera: N/A (Standard), Optional (Mid-Level), Built-in (Top-Level)
• Automatic Calibration Module: N/A (Standard), Optional (Mid-Level), Built-in (Top-Level)
• Additional accessories like calibration kits, cooling-water machines, and specialized burs are available with advanced models.

Included Items:

All models come with essential tools and components, including:

• User’s manual, power cord, USB flash disc, holder, calibration block, and maintenance kit for spindle.
• Additional accessories available with Optional and Top-Level models.

Why Choose Smile-Craft C512D?
The Smile-Craft C512D combines advanced milling technology with user-friendly operation, ensuring high efficiency, accuracy, and reliability. Whether you’re scaling up production or delivering intricate restorations, this machine provides an optimal CAD/CAM processing solution tailored for modern dental labs.
