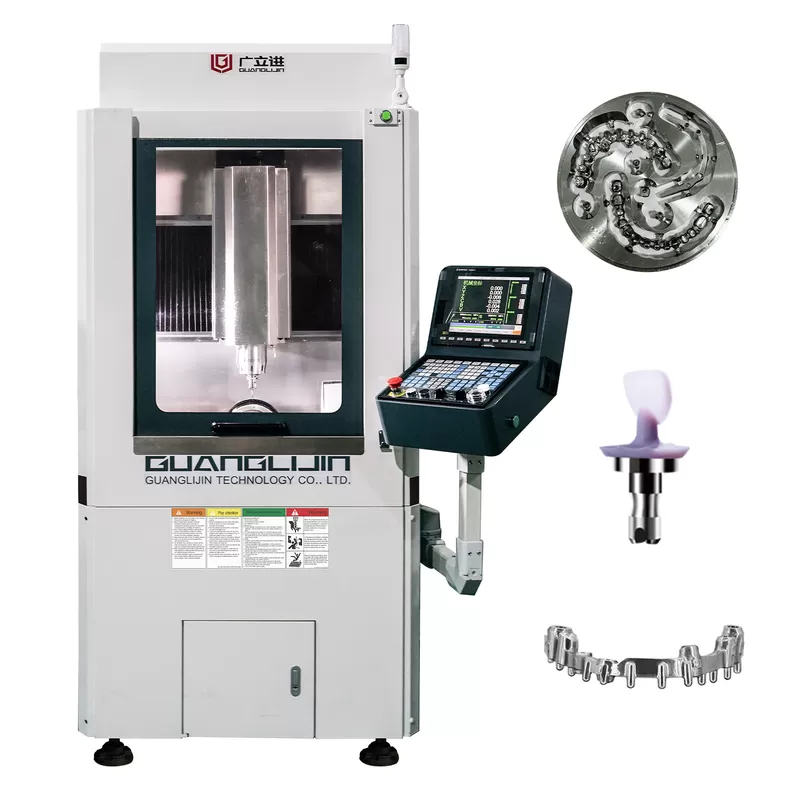

Milling machine (5 axis all round cutting) P50

The P50 5-Axis Milling Machine delivers exceptional precision, efficiency, and versatility, ideal for complex multi-dimensional machining tasks.

Key Features & Technical Highlights:

• Advanced Axis Control:
  • A Axis Reducer: German Alpha reducer with 88.9 Nm rated torque and instantaneous maximum torque of 312 Nm.
  • B Axis Reducer: 1 arcmin accuracy with rated torque of 44.6 Nm and instantaneous maximum torque of 156 Nm for intricate operations.
• Precision Engineering: Rexroth transmission components ensure repeatability of ±0.003 mm.
• High-Speed Spindle: 3.7 kW electric spindle with a maximum speed of 50,000 rpm, featuring water cooling and flow alarms for sustained performance.

Tool and Calibration:

• Tool Magazine: Servo-driven with a capacity for 15 milling tools, utilizing HSK-E25 holders and ER-16 collet chucks.
• Automatic Calibration: Accurate tool setting with a repeatability of ±0.002 mm.

Additional Advantages:

• User-Friendly Operation: Equipped with the SYNTEC 220MA system and a 10.4-inch touch screen for intuitive control, extendable up to 600 mm on the left side.
• Robust Build: Weighing 1.5 tons, ensuring stability and precision in all operations.
• Automatic Lubrication: Timed oiling for hassle-free maintenance.
• Exceptional Flatness: Maintains working flatness within ±0.005 mm.

Dimensions & Power:

• Compact Design: Main body dimensions range from 1100x1300x2100 mm (min.) to 1700x1300x2700 mm (max.).
• Power Requirements: Operates on three-phase 380V/50Hz.

The P50 5-Axis All-Round Cutting Milling Machine is the ultimate solution for precision machining, combining advanced technology with efficient and reliable performance.
