Description

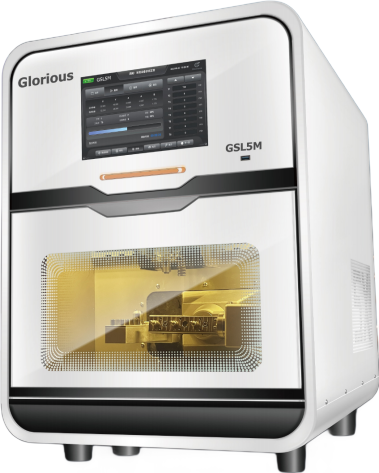

5Z Pro Zirconia Milling Machine (Wet cutting milling machine 5M)

The GSL-5M represents the pinnacle of dental milling innovation, offering unparalleled precision and enhanced capabilities for high-performance grinding and machining. Designed to deliver exceptional results, the GSL-5M is an indispensable tool for dental laboratories focused on precision and efficiency.

Key Features:

1. Precision Five-Axis Linkage
Achieves fine machining of undercut areas with an error margin of less than 0.02mm, ensuring top-tier accuracy for complex restorations.

2. Powerful Spindle for Stability
Equipped with a high-speed spindle capable of 60,000 RPM and a maximum output power of 1.7kW, delivering precise and stable grinding for diverse materials.

3. Advanced Material Handling

• Cut Six or Seven Glass Ceramics at Once: Optimized for high-volume production with exceptional efficiency.
• 90° Vertical Processing: Ensures versatility in handling intricate designs.

4. Real-Time Tool Life Monitoring
Tracks tool usage, enabling timely replacements to minimize downtime and maintain consistent performance.

5. Smooth Axis Movement
High-performance ball screws and Taiwan HIWIN guide rails provide seamless control of axis movements, boosting machining precision and reliability.

Specifications:

• Axes: X, Y, Z, A, B
• Processing Range:
  • A-axis: 360°
  • B-axis: +35° to -20°
• Spindle:
  • Power: 0.75kW
  • Cooling Method: Water cooling
  • Speed: 60,000 RPM
• Materials Processed:
  • Premill abutments, lithium disilicate, elastic ceramics, amber ceramics, titanium columns, and glass ceramics.
• Tool Capacity: 8 tools
• Repeatability: ±0.005mm
• Dimensions: 680×520×700mm
• Weight: 150kg
• Supply Voltage: AC 220V
• Rated Frequency: 50/60 Hz
• Air Pressure: >0.65MPa

Applications:

The GSL-5M excels in precision dental restorations, including cutting pre-mill abutments and glass ceramics, delivering results with enhanced durability and natural aesthetics.

Why Choose the GSL-5M?
Combining cutting-edge technology with robust performance, the GSL-5M is your go-to solution for precise, high-efficiency dental milling. Perfect for high-volume demands and intricate restorations, it ensures consistent quality and productivity, meeting the most stringent industry standards.
